Floorplan - 2015 Prime Time RV Spartan 300 Series 3210
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+23- Sale Price: $46,900
- List Price: $49,900
- Discount: $3,000
-
36ft long
-
11,693 lbs
-
Sleeps 8
-
2 slides
-
Two Entry/Exit DoorsFront Bedroom

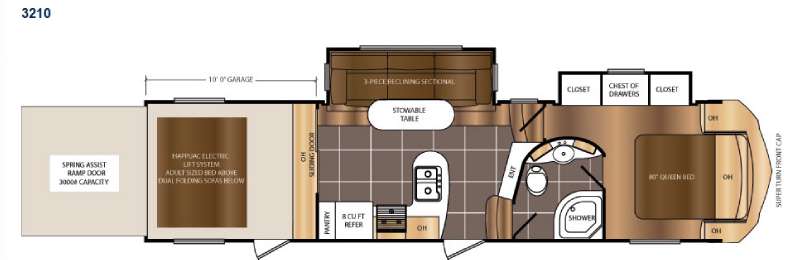

3210 Floorplan
Specifications
| Sleeps | 8 | Slides | 2 |
| Length | 36 ft 2 in | Ext Width | 8 ft 4 in |
| Ext Height | 13 ft 2 in | Hitch Weight | 2616 lbs |
| Dry Weight | 11693 lbs | Cargo Capacity | 4603 lbs |
| Fresh Water Capacity | 105 gals | Grey Water Capacity | 87 gals |
| Black Water Capacity | 45 gals | Tire Size | ST235/80R16/E |
| Furnace BTU | 35000 btu | VIN | 5ZT3STXB8FG300478 |
Description
You will find that the Spartan 300 Series 3210 toy hauler fifth wheel by Prime Time Manufacturing has double slides and a large cargo area.
In the cargo/garage area there is a happijack electric lift system with an adult bed above and dual folding sofas below.
The main living area has a slide on one side of the fifth wheel. The slide has a three piece reclining sectional and stowable table. On the opposite side of the fifth wheel you will find a pantry, refrigerator, three burner range, and double kitchen sink. Across from the sink there is an entertainment center which you are sure to enjoy watching TV or movies on.
There are two sets of stairs. One set of stairs will lead you into the bathroom, while the other set leads directly into the bedroom. Inside the bathroom there is a toilet, sink, and corner shower.
The front bedroom has a slide with two closets and a chest of drawer. There is also a queen bed with an overhead cabinet above the bed.
Features
Exterior
- 6,000 Pound Axles (TT)
- 7,000 Pound Axles (FW)
- 16″ Aluminum Wheels
- 8 Lug Wheels
- Upgraded Radial Tires
- “DURA GLOSS” Tan Colored Hi Temp Fiberglass Sidewalls
- 5″ Truss Roof Rafters 16″ On Center
- 3/8″ WALK ON Roof Decking
- Color Coordinated One-Piece Rubber Roof With 12-Year Warranty
- Powder Coated 12″ I-Beam Frame (FW)
- Powder Coated 10″ I-Beam Frame (TT)
- Oversized Pass Thru Storage With Intelligent Design
- “SUPER TURN” Aerodynamic Fiberglass Front Cap (FW)
- Undermount Spare Tire
- Electric Awning With LED Light
- Slam Latch Baggage Doors With ″Dura Gloss″ Finish
- Magnetic Baggage Door Catches
- 30″ Wide Radius Main Entrance Door With Gas Strut
- Large Swing Out Grab Handle On Main Entry Door
- Digital Ready TV Antenna With Booster
- Dual Vented Attic
- Collapsible Roof Ladder (FW)
- (2) LED Garage Loading Lights
- Edge Protected, Deep Tint Windows On Sidewalls
- DOT Approved Safety Glass Windows
- Extra Large PVC Sewer Hose Storage
- Extended Drip Spouts
- Triple Entry Step With Oversized Steps
- Centralized Holding Tank Pull Handles
- Easy Winterization Valve And Connection
- Easy Access Low Point Drains
- Easy Access Fresh Water Drain Valve
- Upgraded Oetiker Clamp Ring Water Line Fittings
- Universal Docking Center Includes
- Outside Shower With 15′ Flex Hose
- Black Tank Flush
- Battery Disconnect
- Cable/Satellite Connection
- Advantage Package
- Electric Front Landing Gear(FW)
- Electric Tongue Jack (TT)
- “Quiet Cool” Ducted Air Conditioner
- Generator Prep
- Happi-Jack Electric Bed & Double Sofa/Bed
Interior
- Native American Glazed Cherry Hardwood Cabinet Doors
- Native American Glazed Cherry Hardwood Drawers
- Baltic Birch Residential Drawer Boxes
- Cherry Panel Refrigerator Front
- 8 Cubic Foot Refrigerator
- Pots-N-Pans Drawers
- Full Extension Drawer Guides
- Large, Easy-To-Pull Cabinet Pull Handles
- Microwave With Vented Range Hood
- Deluxe Range With Heavy Grates
- High Arch Kitchen Faucet
- Double Bowl Kitchen Sink With Extra Deep Bowls
- LED TV (Living Room)
- Residential Furniture
- Linoleum With 5-Year Warranty
- Pleated Shades
- Deluxe Power Vent Fan With Remote Lid
- Flush Mount LED Ceiling Lights With High Dispersion Lenses
Bathroom
- Radius Shower With Glass Shower Door (FW)
- Oversized Tub With Shower Surround (TT)
- Adjustable Shower Faucet
- Deluxe “Sky View” Skylight (FW)
- Dual Lever Bath Faucet
- 12V Power Vent Fan In Bath
- Hi Rise Porcelain Toilet
- Heating And Air Conditioning Vents
Bedroom
- Satellite and Cable Connection
- “Stay Cool” LED Reading Lights Above Bed
- Wardrobe Closets With Drawers
- Mirrored Wardrobe Doors
- Oversized Chest Of Drawers
- Massive Under-Bed Storage
- Night Stands With Overhead Cabinets
- Queen Bed Mattress
- Designer Bedspread
- Cherry Bedroom Entrance Door
Garage
- Satellite and Cable Connection
- Steel Tie Downs Bolted to Chassis
- 8′ Spring Assisted Ramp Door
- 22″ BLACK DIAMOND® Protection On Walls
- Gas/Oil Resistant Flooring
- (2) Ram Air Vents
- Bunk Ladder
- Free Standing Table With Folding Legs
- Pull Down Garage Screen
- Roof Vent
- Air Conditioning Vents With Adjustable Louvers
- Washer/Dryer Prep (Some Models)
- Ducted Heat
Utilities
- Electric Front Landing Gear
- Rear Stabilizer Jacks
- Fuel Station With 12V Pump And Static Line
- 30 Gallon Fuel Tank
- “Quiet Cool” Ducted Air Conditioner
- Dual Zone Temperature Sensors
- Digital Thermostat
- 35,000 BTU Furnace
- Gas/Electric Quick Recovery Water Heater
- Direct Spark Ignition Water Heater
- Water Heater By-Pass
- Hi Capacity Water Pump
- 50 AMP (110) Power
- Detachable Power Cord
- 90 AMP (12V) Converter (FW)
- 60 AMP (12V) Converter (TT)
- Dual 30 lb LP Bottles
- CO Detector
- LP Detector
- Smoke Detector
- Fire Extinguisher
- Direct Access Fresh Water Fill
- Fresh Water Capacity - 105 Gallons
- Black Water Capacity - 45 Gallons
- Gray Water Capacity - 87 Gallons (3210) 45 Gallons (2510, 3010)
ETERNABOND Construction
- 2″ Laminated Aluminum Framed Sidewalls
- Laminated Aluminum Framed Main Floor
- 1″ One-Piece Garage Floor Decking
- Laminated Aluminum Framed Slide Room Walls And Roofs
- Welded Construction
- 100% Glue Coverage On All Laminated Parts
- EGS Backers In Walls And Floors
Thermal Package
* R-Values Calculated at 80° Ambient Temperature
- Heated And Enclosed Water Lines
- Enclosed Underbelly
- Heated Holding Tanks
- Double Layer Of Fiberglass Insulation In Roof (R-14)
- Radiant Shield Technology In Roof (R-38*)
- 3″Hi Density EPS Foam In Main Floor (R-14)
- Radiant Shield Technology Under Main Floor (R-38*)
- Double Layer Of Fiberglass Insulation In Front Wall (R-14)
- Radiant Shield Technology In Front Wall (R-38*)
- Insulated Slide Room Floors (R-38*)
- Insulated Bath And Bed Deck Floors (R-38*)
- Heated Pass Thru Storage (FW)
Options
- Dual Pane Windows
- Onan Marquis Gold 5.5KW Gas Generator
- QAI
- Battle Pack (FW): Rear Patio Kit and Six-Point Auto Leveling
- Battle Pack (TT): Rear Patio Kit and Three Season Patio Doors in Garage
See us for a complete list of features and available options.
